    Single Double Screw 260kg/H Capacity Efficient PP Strapping Band Extrusion Line 5-19mm Longer Length

    Ask Lasest Price
    Brand Name : JIATUO CHINA
    Model Number : JTPP-110
    Certification : IS CEO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 30-40days
    • Product Details
    • Company Profile

    Single Double Screw 260kg/H Capacity Efficient PP Strapping Band Extrusion Line 5-19mm Longer Length

    Single Double Screw 350kg/H Capacity Efficient PP Strapping Band Extrusion Line 5-19mm Longer Length


    Product Description of PP Strap Making Machine


    PP strapping extrusion line is an advanced, efficient and economical polypropylene strapping tape production line. This line is designed to meet the needs of high-quality production and can process recycled and new materials. The strapping width of this line ranges from 5-19 mm, equipped with an automatic winding system, and the production capacity is up to 260 kg/hour (according to customer requirements). It is the best choice for the production of polypropylene strapping tape and PP strapping. We can make it lighter in weight, in order to save more use costs for customers, it is the best choice for strapping machine investment.


    Technical Parameters of pp strap production line


    ParameterValue
    Product NamePP Strap Band Extrusion Line
    Total Power100KW
    Production capacity260-300kg/h
    Screw Material38CrMoALA
    Screw diameter (mm)110mm
    Take-up SystemAutomatic Take-up
    Warranty1 Year
    Control SystemPLC
    Strap Strength≥350N/mm
    Video outgoing-inspectionProvided

    High quality single screw extruder


    Adopted with Xinjie computer system. Directly driven frequency motor 38CrMoAl materials 90mm screw with special design for pet strap extrusion.

    High quality stretching system


    Perfect design heating oven system and using 18-30kw motor to drive stretching rollers, it will ensure good strap drawing rate.

    1. Stretch ratio: 10-15 times (adjustable)

    2. Line speed: >250-300 m/min

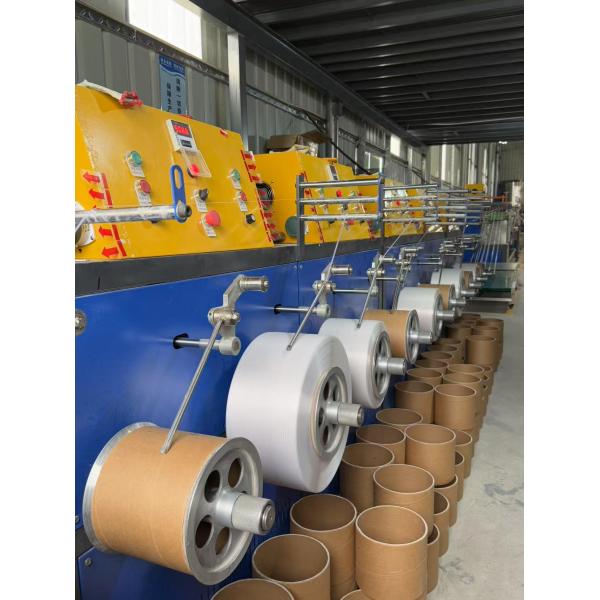

    Semi-Automatic winder


    1. Double station winding machine

    2. Paper core specification: ¢200*180 (mm)

    3. Torque motor: 6 Nm

    4. Return shaft size: ¢32*180mm (imported from Taiwan)

    5. Counter/coder: Taiwan Yangming


    Our service


    1. we given client the details technician offer, sign the sales contract etc
    2. we supply the details layout, installation instruction, technician support for the clients
    3. we arrange engineer to install the machinery and training the workers for client
    4. We have 24hours team to solve the after sales problem
    5. We have free spare parts with the machine
    6. We supply long term spare parts for every customer
    7. We always up date the new technology to every customer
